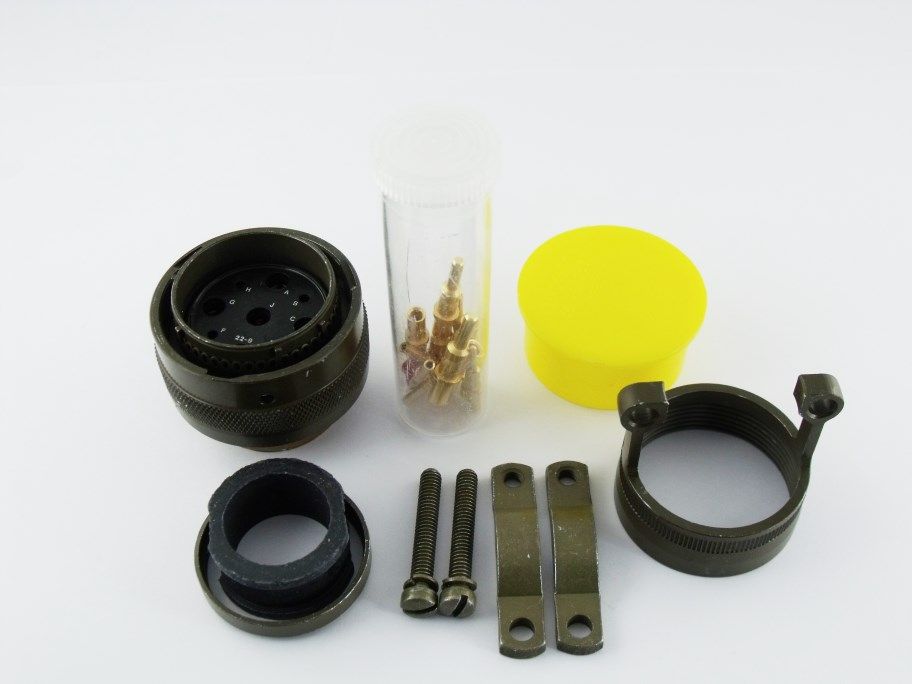

Ptg06Se22-09Ssr149 Dairesel Konnektör

1.733,62 TL + % 0

1.733,62 TL

Ürün Kodu : PTG06SE22-09SSR149

Marka : Netmon

Kategori : Arduino Ürünleri ve Setleri

PAYLAŞ :

PRODUCT INFORMATION
Sealing:	Meets IP67
Shielding:	Yes
Connector Type:	Circular
Connector Style:	Plug
Mounting Type:	Cable
Contacts, # of:	55
Contact Style:	Pin
Termination Method:	Crimp
Crimp Wire Gauge:	24,22,20
Insert Arrangement:	22-55
Contact Size:	55#20
Contacts Supplied:	Yes
Contact Material:	Copper Alloy
Contact Plating:	50 microinches Gold Plate
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Chromate over Cadmium
Shell Color:	Olive Drab
Insert Material:	Neoprene
Grommet & Seals Material:	Neoprene
Amperage Rating:	7.5A
Operating Voltage AC V RMS Max:	600
Operating Temperature °F (°C):	-67 to +257 (-55 to +125)
Contact Mating Life:	500
RoHS:	No
Operating Voltage DC:	850
Orientation:	Straight
Service Rating:	I
Endbell Type:	Heat Shrink - Shielded
Weight (lbs):	0
Weight (g):	15.569.310
