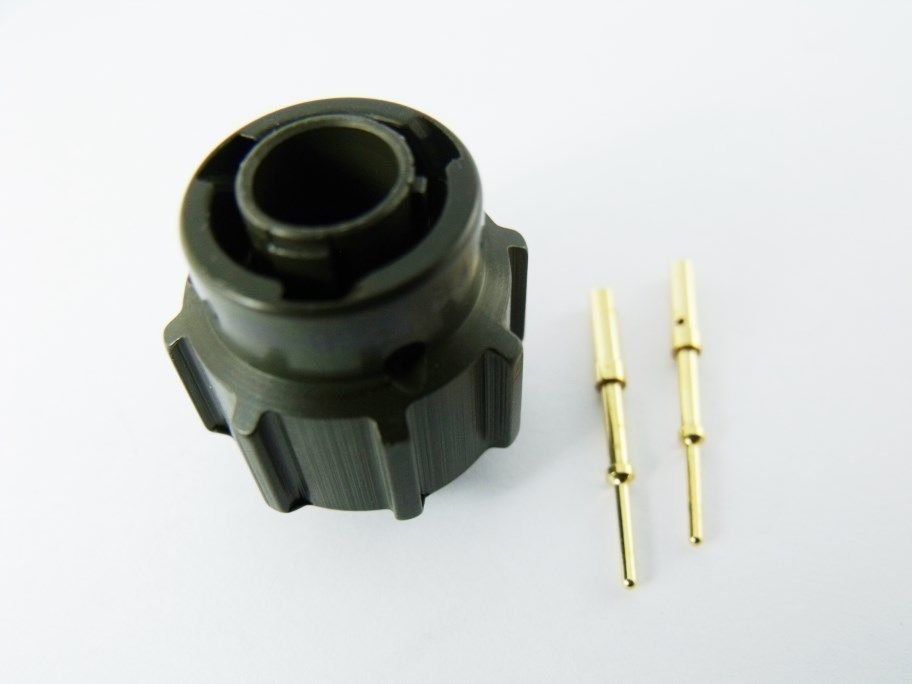

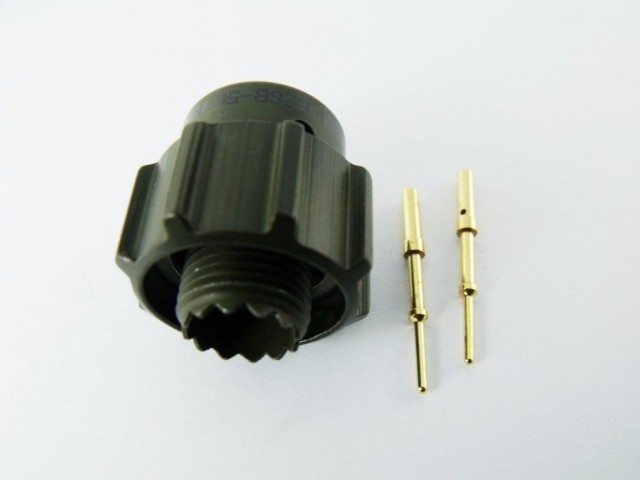

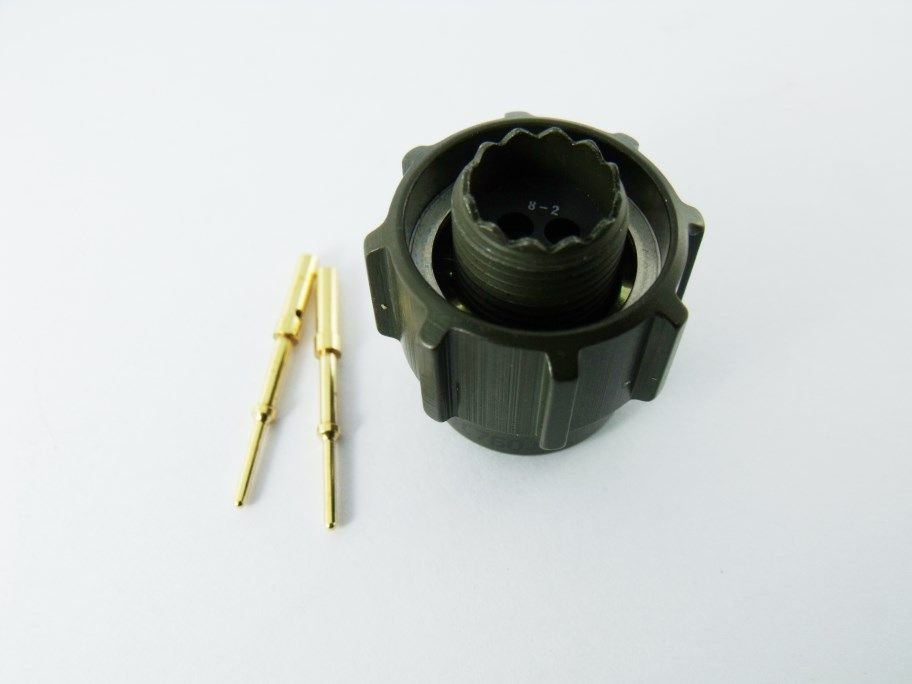

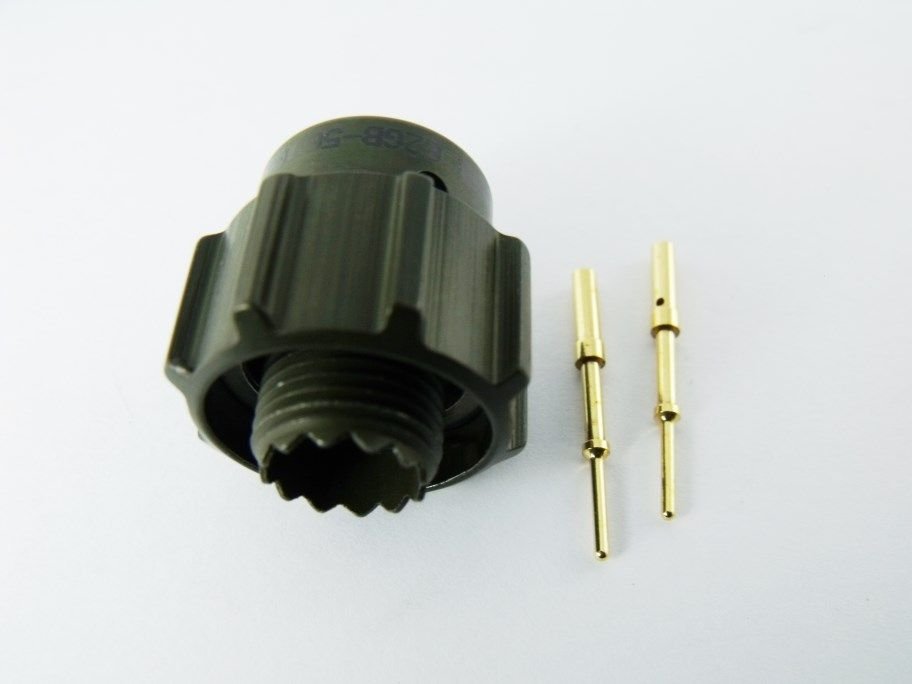

62Gb-56Tg08-02Sn Dairesel Konnektör

Name: 62Gb-56Tg08-02Sn Dairesel Konnektör
Brand: Netmon
SKU: 62GB-56TG08-02SN
Price: 1320.57 TRY
Availability: InStock

1.320,57 TL + % 0

1.320,57 TL

Ürün Kodu : 62GB-56TG08-02SN

Marka : Netmon

Kategori : Arduino Ürünleri ve Setleri

PAYLAŞ :

PRODUCT INFORMATION
Specification:	BS 9522 F0017
Sealing:	Meets IP67
Shielding:	Yes
Connector Type:	Circular
Connector Style:	Plug
Mounting Type:	Cable
Contacts, # of:	2
Contact Style:	Socket
Termination Method:	Solder
Insert Arrangement:	08.Şub
Contact Size:	2#20
Contacts Supplied:	Yes
Contact Material:	Copper Alloy
Contact Plating:	50 microinches Gold Plate
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Shell Color:	Olive Drab
Insert Material:	Neoprene
Grommet & Seals Material:	Neoprene
Amperage Rating:	7.5A
Operating Voltage AC V RMS Max:	700
Operating Temperature °F (°C):	-67 to +257 (-55 to +125)
Contact Mating Life:	500
RoHS:	Yes
Insert Rotation/Keying:	Normal
Operating Voltage DC:	700
Service Rating:	I
Weight (lbs):	0.01687
Weight (g):	765.067
